How PV Combiner Boxes Improve Efficiency and Safety in Solar Power Systems

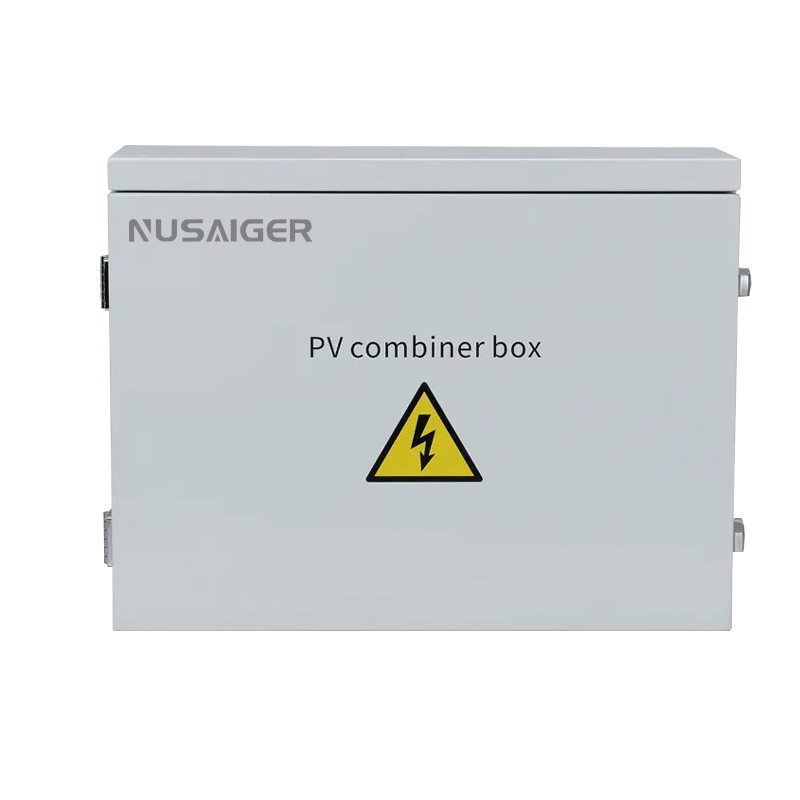

The PV combiner box is one of the most essential and underrated components of a solar photovoltaic (PV) system. While its primary function is to combine multiple DC string inputs into a single output, its impact on system performance, reliability, safety, and maintainability goes much deeper. In this in-depth article, we explore how PV combiner boxes significantly improve the overall efficiency and safety of solar power installations.

1. Role of the Combiner Box in Solar Architecture

In most solar installations, each string of photovoltaic modules generates a DC output. These outputs must be consolidated before being delivered to an inverter. The combiner box acts as the junction point where this consolidation occurs. It typically contains fuses or circuit breakers, surge protective devices (SPDs), and sometimes string monitoring modules.

Key Functions:

• Combines multiple DC inputs into a single output
• Protects against short circuits and overcurrents
• Limits the spread of faults through isolation
• Enables real-time performance monitoring

2. Efficiency Benefits of Using a PV Combiner Box

2.1 Reduced Wiring Losses

By centralizing DC wiring, combiner boxes reduce the total length of cable runs. This minimizes line resistance and voltage drop, thereby improving overall transmission efficiency.

2.2 Improved Voltage Matching

Combiner boxes help regulate string-level voltages by isolating defective strings. This reduces the risk of mismatch losses, which can drag down the performance of an entire array.

2.3 Enhanced Load Balancing

Combiner boxes can be engineered to distribute input load more evenly across string fuses and busbars, helping to maintain stable system performance even under partial shading or module degradation.

3. Safety Enhancements Provided by PV Combiner Boxes

3.1 Integrated Overcurrent Protection

Each string input is typically fused, ensuring that if one string experiences a short circuit, it doesn’t overload other strings or damage the inverter.

3.2 Arc Flash Prevention

Quality combiner boxes feature arc suppression features, high-voltage insulation, and terminal isolation—all critical to preventing arc flash incidents during fault conditions or maintenance.

3.3 Surge Protection

Combiner boxes often include Type 2 or Type 1+2 surge protective devices (SPDs) that protect the system from voltage spikes caused by lightning or grid disturbances.

3.4 Safe Disconnection

Built-in DC disconnect switches allow for safe isolation of the array during maintenance or emergencies without requiring external disconnects.

3.5 Grounding and Bonding

Combiner boxes provide a common point for grounding all incoming string negatives and the metal enclosures of equipment, ensuring fault current has a safe path to earth.

4. Monitoring and Diagnostics

4.1 String-Level Monitoring

Advanced combiner boxes include monitoring modules capable of measuring voltage, current, and temperature at the string level. This real-time data helps detect:

• String faults
• Module degradation
• Soiling or shading effects
• Connector or fuse failure

4.2 Communication Integration

Modern boxes offer RS485, Modbus, or Ethernet interfaces that allow remote monitoring via SCADA, BMS, or cloud-based platforms.

4.3 Predictive Maintenance

Combiner boxes that support data logging help operators establish baselines and identify performance deviations before major faults occur.

5. Design Features that Promote Efficiency and Safety

• Clear Labeling: Reduces installation and trouble
