Introduction
Time is money—especially on large-scale solar installation projects. PV combiner boxes are not just electrical components but crucial tools for reducing installation time and ensuring clean, efficient wiring.
The Problem Without a Combiner Box
Multiple strings wired directly to the inverter
Long cable runs increase resistance and losses
Cables become tangled and unmanageable
Higher labor costs and extended installation time

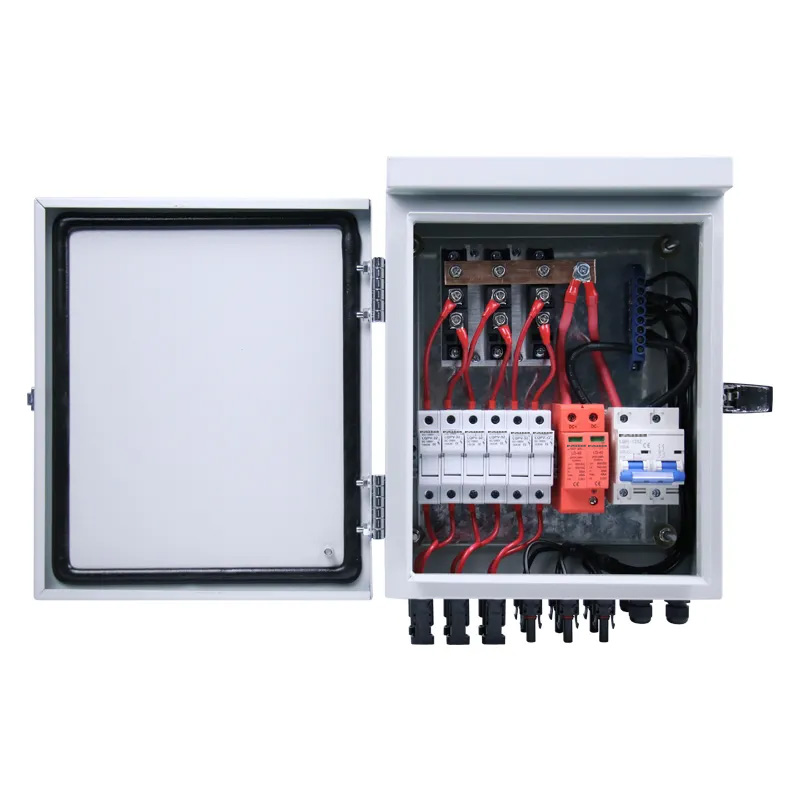

How a PV Combiner Box Solves These Issues
Centralized Wiring
One combiner box collects output from multiple strings (typically 4–24), reducing the number of cables going to the inverter.
Simplified Cable Management
Cables from panels enter neatly into the box.
A single large cable exits the box and routes to the inverter.
Shorter Cable Runs
By installing the combiner box closer to the solar array, installers can minimize DC cable lengths.
Reduced Conduit Size and Labor
Fewer conductors = smaller conduit size = faster trenching and routing
Pre-wired combiner boxes save hours of labor
Real-World Example
On a 500kW rooftop system, using 20 combiner boxes reduced cable usage by 40% and installation time by over 20%, saving thousands in labor costs.
Conclusion
Combiner boxes are key components for any solar installer looking to save time, reduce costs, and keep projects on schedule. Their impact on wiring efficiency is often underestimated—but shouldn’t be.
