1. Introduction

In photovoltaic (PV) systems, Surge Protective Devices (SPDs) play a critical role in protecting sensitive electrical equipment from transient overvoltages caused by lightning strikes, switching operations, or grid disturbances. Choosing the right PV SPD is not as simple as picking a device off the shelf; it requires a clear understanding of the technical parameters, system voltage, grounding configuration, and international safety standards.

This comprehensive guide will help solar engineers, EPC contractors, and system owners learn how to select the best SPD for their PV systems. We will cover key parameters, selection criteria, compliance standards, installation tips, and common mistakes to avoid.

2. Why SPD Selection Matters in PV Systems

An SPD is not a “one-size-fits-all” device. If undersized, it may fail prematurely during the first surge event, leaving your system unprotected. If oversized or improperly rated, it can lead to unnecessary costs or improper system performance. Therefore, correct SPD selection is essential for:

• Protecting PV inverters, combiner boxes, and monitoring systems
• Preventing costly downtime caused by surge damage
• Complying with IEC and UL safety regulations
• Ensuring long-term system reliability

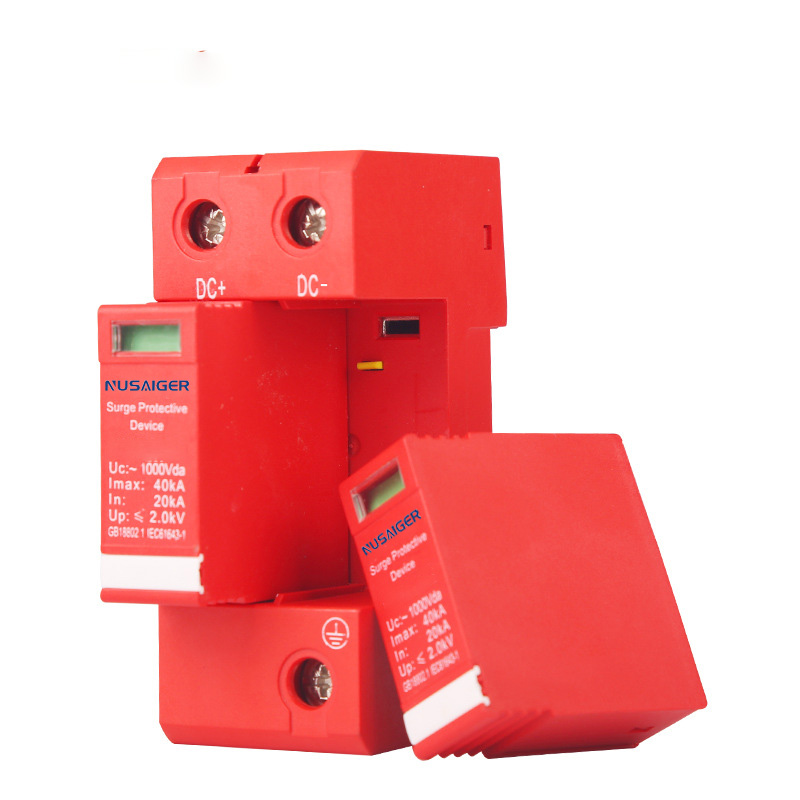

3. Key Parameters for Choosing PV SPDs

When selecting an SPD for a PV system, several electrical and mechanical parameters must be evaluated. Below are the most important factors:

3.1 Maximum Continuous Operating Voltage (Uc)

Uc is the maximum voltage the SPD can continuously withstand without degradation. For PV applications, the SPD must be rated according to the system’s DC voltage level (e.g., 600 VDC, 1000 VDC, 1500 VDC). Always select an SPD with Uc slightly above the system’s nominal voltage.

3.2 Nominal Discharge Current (In)

This represents the current that the SPD can safely discharge repeatedly without damage. For PV systems, common In values range from 5 kA to 20 kA. Higher values are recommended for areas with frequent thunderstorms.

3.3 Maximum Discharge Current (Imax)

Imax indicates the maximum surge current the SPD can handle once. For example, an SPD with Imax of 40 kA can safely withstand a lightning strike surge at that current level.

3.4 Voltage Protection Level (Up)

Up is the clamping voltage, i.e., the maximum voltage that will appear at the SPD’s output terminals during a surge. Lower Up values mean better protection, but they should still be compatible with the insulation level of connected equipment.

3.5 Response Time

SPDs should respond within nanoseconds to effectively clamp surges. A fast response time ensures that transient voltages do not reach sensitive PV inverters and control electronics.

3.6 PV-Specific Considerations

• Must be designed for DC current (not AC)
• Thermal disconnector for safe end-of-life
• Remote signaling for monitoring in utility-scale PV plants

4. International Standards for PV SPDs

Choosing an SPD is not just about electrical ratings; compliance with international standards ensures safety and reliability. The most relevant standards include:

• IEC 61643-31: Specific for SPDs in PV systems
• IEC 60364-7-712: PV installation requirements
• UL 1449 4th Edition: US SPD testing and certification
• EN 50539-11: European PV surge protection standard

Always select SPDs that are certified to these standards, as they guarantee performance under real-world surge conditions.

5. SPD Selection for Different PV System Voltages

Modern solar systems operate at different DC voltages depending on their size and application. Below are SPD selection guidelines:

• Residential PV Systems (600 VDC): Use SPDs with Uc ≥ 600 VDC, Up ≤ 2.5 kV
• Commercial PV Systems (1000 VDC): Use SPDs with Uc ≥ 1000 VDC, In ≥ 10 kA
• Utility-Scale PV Systems (1500 VDC): Use SPDs with Uc ≥ 1500 VDC, In ≥ 20 kA, remote signaling recommended

6. Installation Location and SPD Coordination

Correct SPD selection also depends on where the device will be installed in the PV system:

• At the PV Array (DC Side): Protects string cables and combiner boxes
• At the Inverter Input: Protects inverter DC terminals
• At the AC Output: Protects grid interface equipment

SPDs should be coordinated to ensure effective protection. For example, a Class I SPD at the service entrance combined with Class II SPDs at inverter terminals.

7. Common Mistakes in SPD Selection

• Using AC-rated SPDs instead of PV DC-rated devices
• Choosing SPDs with incorrect voltage ratings
• Ignoring local lightning density data
• Not considering end-of-life indicators or monitoring
• Improper installation without coordination

8. Practical Case Study

A 100 MW solar farm in Southeast Asia installed 1500 VDC inverters but mistakenly used SPDs rated only for 1000 VDC. After several thunderstorms, multiple inverters were damaged due to insufficient surge protection. The corrective action involved replacing all SPDs with 1500 VDC rated models, in compliance with IEC 61643-31. This highlights the importance of voltage compatibility in SPD selection.

9. Conclusion

Selecting the right PV Surge Protective Device is a crucial step in designing a reliable and safe solar power system. By understanding key parameters such as Uc, In, Imax, and Up, as well as complying with international standards, system owners can significantly reduce the risk of surge-related failures. Always ensure that SPDs are PV-specific, correctly rated, and installed in coordination across different system points.

A well-chosen SPD not only protects expensive equipment like inverters and monitoring systems but also ensures long-term ROI and operational safety of solar PV plants.
