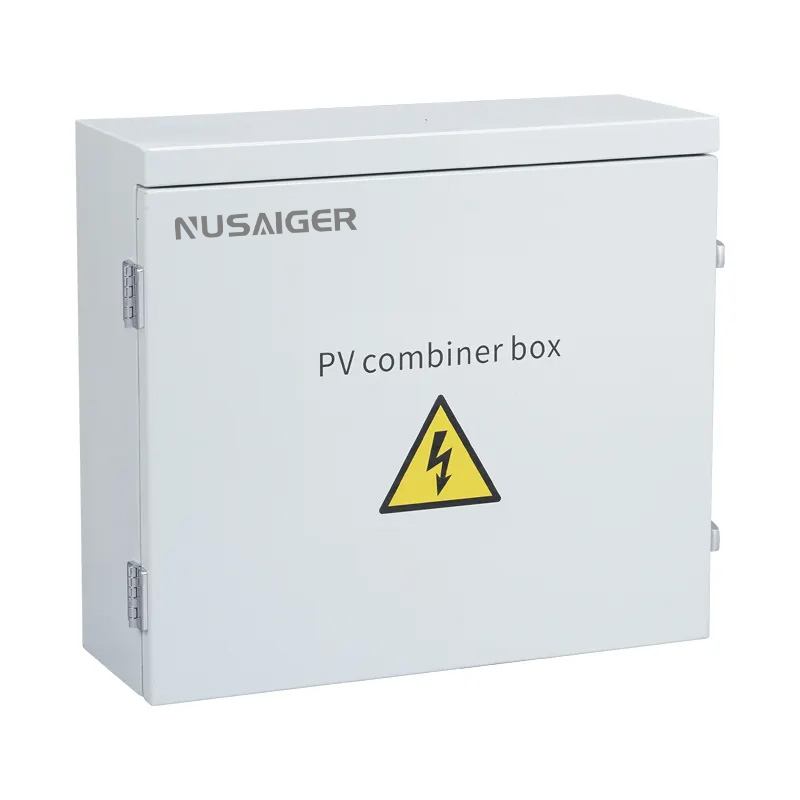

Troubleshooting Common Issues in PV Combiner Boxes
Like any electrical component, PV combiner boxes can experience performance issues over time. Diagnosing and fixing these early ensures continued system performance and prevents bigger failures.
Common Issues to Watch For
- Blown Fuses: Often caused by short circuits or string mismatch. Check for voltage and current imbalances.
- Loose Connections: Can result in arcing and overheating. Inspect all terminals regularly.
- Surge Protector Failure: After lightning or voltage spikes, SPDs may degrade or fail silently. Use visual indicators or testing tools.
- Moisture Intrusion: Leads to corrosion and insulation failure. Ensure gaskets are intact and enclosure is sealed.
Diagnostic Tools
Use multimeters, infrared thermometers, and clamp meters to check voltage drop, heat spots, and load balance across inputs.
When to Replace Components
Fuses and SPDs are consumables—replace them periodically or after any surge event. Upgrade connectors if signs of heat damage are visible.
Conclusion
Regular inspection and troubleshooting of your PV combiner box helps avoid costly downtime and improves safety. Document issues and schedule preventive maintenance every 6–12 months.
